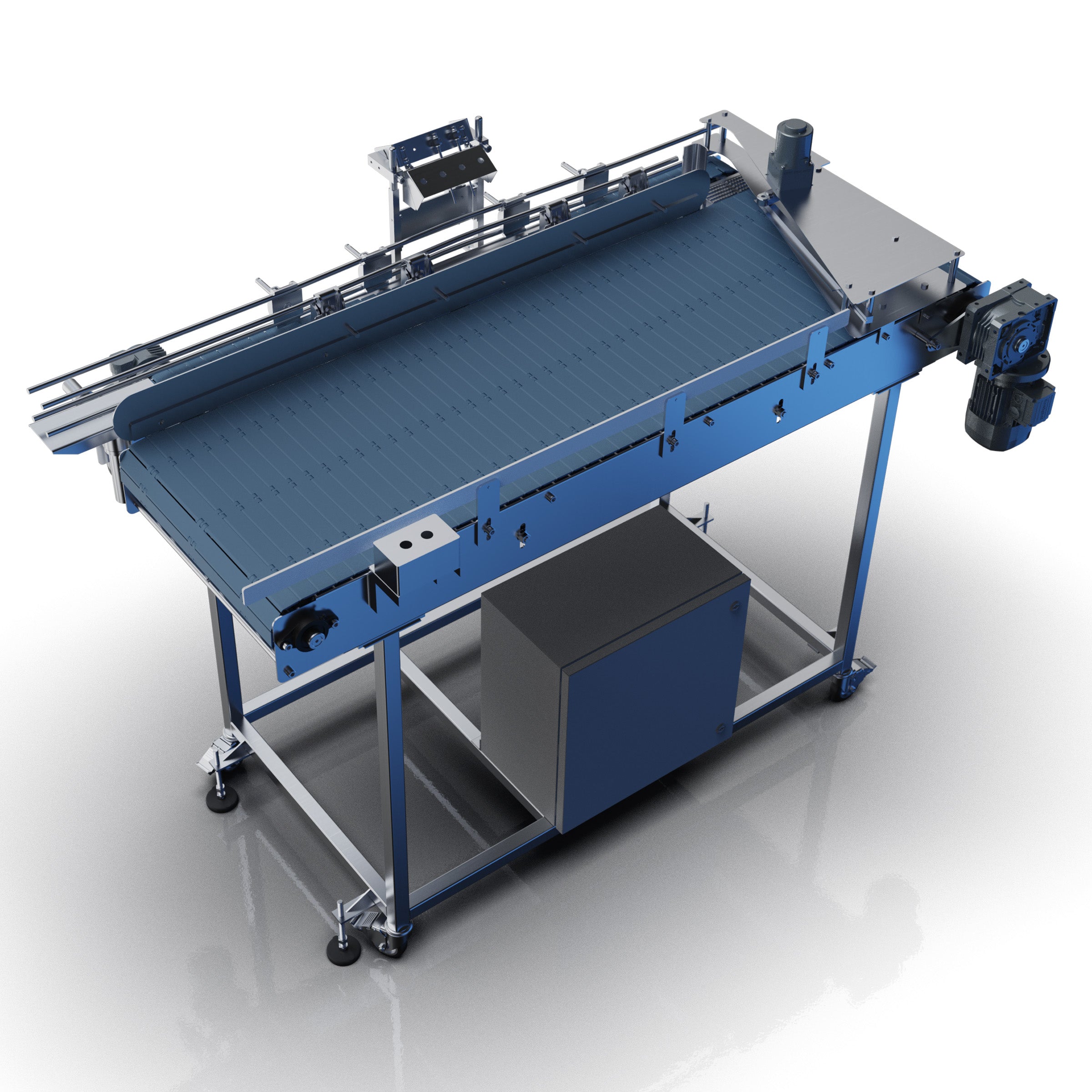

Infeed Conveyor Table for Evolution Series
With IONIZED Air Rinser
Load air-rinsed cans continuously into your Evolution Series canning system for a cost effective, semi-automated infeed solution to tight spaces.
The Infeed Conveyor Table helps you integrate ionized air rinsing, inkjet date coding, and infeed accumulation into a single-operator loading process.
Spec Sheet
Load up to 250 standard 211-body cans or additional sleek body cans for 5 minutes of accumulation
Rinse cans with ionized air and clear particulates while preventing dissolved oxygen pickup
Date Coder Compatible: Add your date code printer between the ionized air rinser and infeed.
Switch between can sizes in minutes, with simple rail adjustments-
Key Features
- 250-CAN CONTINUOUS CAPACITY: Load up to 250 standard 211-body cans or additional sleek body cans for 5 minutes of accumulation at maximum speed. Two space-saving conveyors for depalletizing and rinsing can be independently controlled for precise speed matching with your Evolution Series canning system.
- RESPONSIVE IONIZED AIR RINSING: Rinse cans with ionized air and clear particulates while preventing dissolved oxygen pickup inherent in water rinsing. Sensors activate an intermittent air pulse only when a can is present, reducing your air utility consumption. The unique tilting conveyor design allows debris to blow out without resettling in the can.
- DATE-CODER COMPATIBLE: Add your date code inkjet printer between the ionized air rinser and infeed. Mounting brackets are included.
- EASY CAN CHANGEOVER: Switch between can sizes in minutes, with simple rail adjustments and no change parts needed.
Technical Specifications
- DIMENSIONS: 79 in (201 cm) L x 46 in (117 cm) W x 46.5 in (118 cm) H
- POWER:
- Single-phase 13A @ 115VAC, 60 Hz; requires 20A dedicated circuit
- Single-phase 6.5A @ 230VAC, 50/60 Hz
- SPEED: Up to 50 cans per minute (at 211 can body)
- CAN CAPACITY: 250 cans
- ACCUMULATION CAPACITY TIME PER EVOLUTION SERIES CANNING SYSTEM: (at 211 can body)
- WG1 (at 15 CPM): 16 Minutes
- WG2 (at 30 CPM): 8 Minutes
- WG3 (at 35 CPM): 7 Minutes
- WG4 (at 40 CPM): 6 Minutes
- WG5 (at 50 CPM): 5 Minutes
- CAN BODY COMPATIBILITY:
- 12 oz to 16 oz standard 211 can body diameter
- 12 oz 204 sleek can body diameter
- MACHINE COMPATIBILITY: Evolution Series single-lane canning systems
- INSTALLATION: Self-installed
